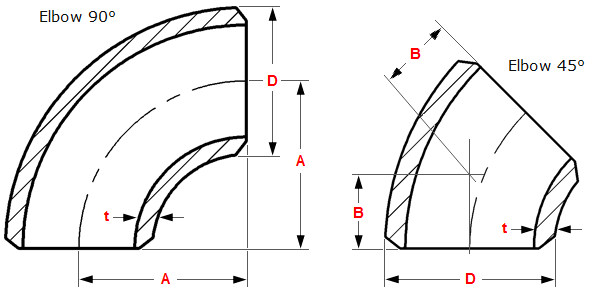

ASME B16.9 Butt Weld Elbows Dimensions
|
NPS |
O.D. |
90° |
45° |
90° |
45° |
|
1/2 |
21.3 |
38 |
16 |
|
|
|
3/4 |
26.7 |
38 |
19 |
57 |
24 |
|
1 |
33.4 |
38 |
22 |
76 |
31 |
|
1.1/4 |
42.2 |
48 |
25 |
95 |
39 |
|
1.1/2 |
48.3 |
57 |
29 |
114 |
47 |
|
2 |
60.3 |
76 |
35 |
152 |
63 |
|
2.1/2 |
73 |
95 |
44 |
190 |
79 |
|
3 |
88.9 |
114 |
51 |
229 |
95 |
|
3.1/2 |
101.6 |
133 |
57 |
267 |
111 |
|
4 |
114.3 |
152 |
64 |
305 |
127 |
|
5 |
141.3 |
190 |
79 |
381 |
157 |
|
6 |
168.3 |
229 |
95 |
457 |
189 |
|
8 |
219.1 |
305 |
127 |
610 |
252 |
|
10 |
273 |
381 |
159 |
762 |
316 |
|
12 |
323.8 |
457 |
190 |
914 |
378 |
|
14 |
355.6 |
533 |
222 |
1067 |
441 |
|
16 |
406.4 |
610 |
254 |
1219 |
505 |
|
NPS |
O.D. |
90° |
45° |
90° |
45° |
|
18 |
457 |
686 |
286 |
1372 |
568 |
|
20 |
508 |
762 |
318 |
1524 |
632 |
|
22 |
559 |
838 |
343 |
1676 |
694 |
|
24 |
610 |
914 |
381 |
1829 |
757 |
|
26 |
660 |
991 |
406 |
1981 |
821 |
|
28 |
711 |
1067 |
438 |
2134 |
883 |
|
30 |
762 |
1143 |
470 |
2286 |
946 |
|
32 |
813 |
1219 |
502 |
2438 |
1010 |
|
34 |
864 |
1295 |
533 |
2591 |
1073 |
|
36 |
914 |
1372 |
565 |
2743 |
1135 |
|
38 |
965 |
1448 |
600 |
2896 |
1200 |
|
40 |
1016 |
1524 |
632 |
3048 |
1264 |
|
42 |
1067 |
1600 |
660 |
3200 |
1326 |
|
44 |
1118 |
1676 |
695 |
3353 |
1389 |
|
46 |
1168 |
1753 |
727 |
3505 |
1453 |
|
48 |
1219 |
1829 |
759 |
3658 |
1516 |
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
DIMENSIONAL TOLERANCES OF BUTT WELD ELBOWS - 45° AND 90° - LR AND 3D - ASME B16.9 -
|
Nominal Pipe Size |
1/2 to 2.1/2 |
3 to 3.1/2 |
4 |
5 to 8 |
|
Outside Diameter |
+ 1.6 |
1.6 |
1.6 |
+ 2.4 |
|
Inside Diameter at End |
0.8 |
1.6 |
1.6 |
1.6 |
|
Center to End LR (A/B) |
2 |
2 |
2 |
2 |
|
Center to End 3D (A/B) |
3 |
3 |
3 |
3 |
|
Nominal Pipe Size |
10 to 18 |
20 to 24 |
26 to 30 |
32 to 48 |
|
Outside Diameter |
+ 4 |
+ 6.4 |
+ 6.4 |
+ 6.4 |
|
Inside Diameter at End |
3.2 |
4.8 |
+ 6.4 |
+ 6.4 |
|
Center to End LR (A/B) |
2 |
2 |
3 |
5 |
|
Center to End 3D (A/B) |
3 |
3 |
6 |
6 |
|
Wall Thickness (t) |
Not less than 87.5% of Nominal Wall Thickness |
|||
Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
