Weld steel pipes

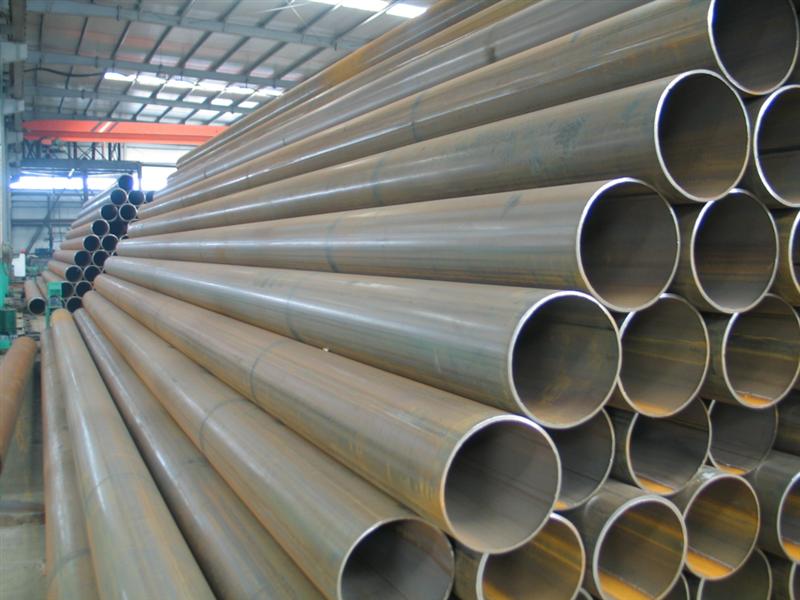

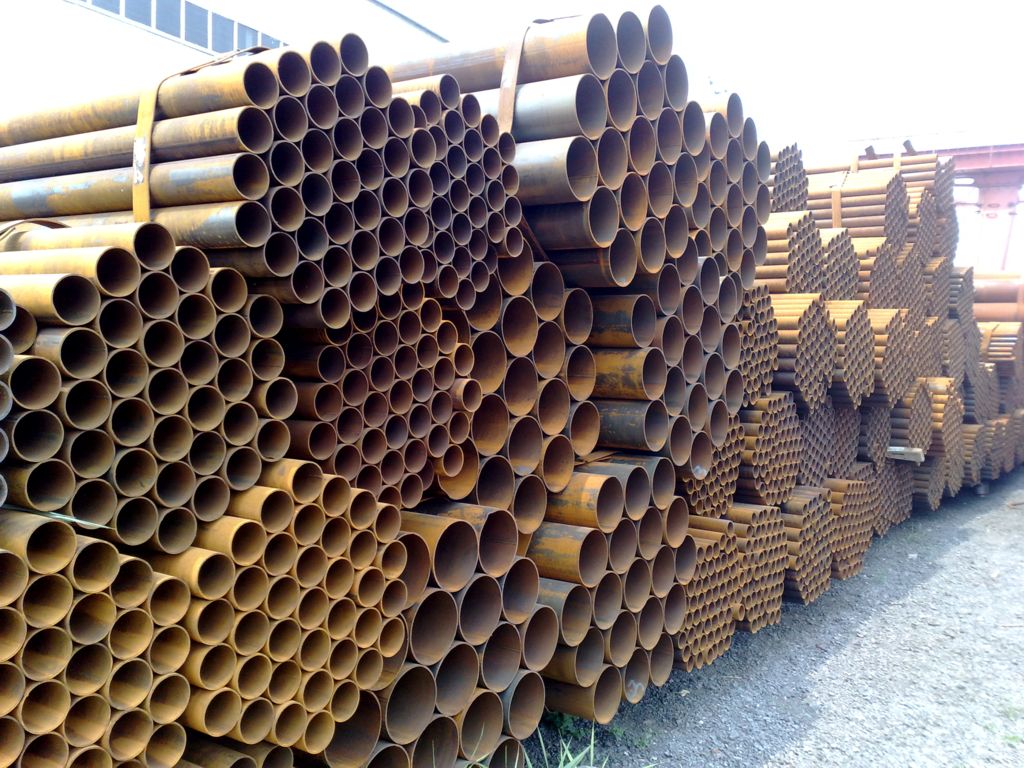

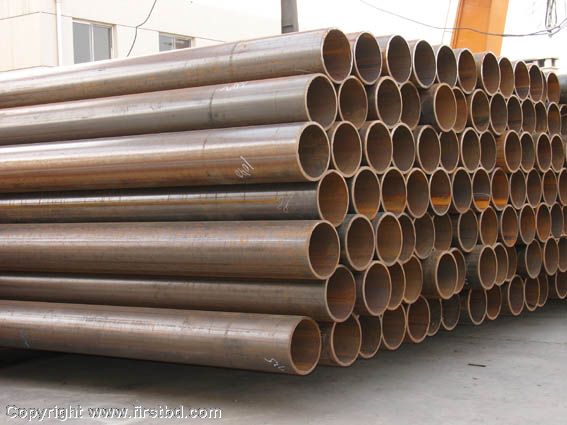

Welded steel pipe (steel pipe manufactured with a weld) is a tubular product made out of flat plates, known as skelp, that are formed, bent and prepared for welding.

Produce an extensive selection of welded steel pipe including ERW, HFI, EFW, LSAW, DSAW and UOE type carbon steel pipe along with their respective flanges and fittings.

Welded Tube and Pipe Manufacturing Processes

Steel pipes are made by two different processes. The overall production method for both processes involves three steps.

First, raw steel is converted into a more workable form. Next, the pipe is formed on a continuous or semicontinuous production line. Finally, the pipe is cut and modified to meet the customer’s needs.

Ends of Pipes

For the ends of pipes are 3 standard versions available.

Plain Ends (PE)

Threaded Ends (TE)

Beveled Ends (BE)

The PE pipes will generally be used for the smaller diameters pipe systems and in combination with Slip On flanges and Socket Weld fittings and flanges.

The TE implementation speaks for itself, this performance will generally used for small diameters pipe systems, and the connections will be made with threaded flanges and threaded fittings.

The BE implementation is applied to all diameters of buttweld flanges or buttweld fittings, and will be directly welded (with a small gap 3-4 mm) to each other or to the pipe.

Ends are mostly be beveled to angle 30° (+ 5° / -0°) with a root face of 1.6 mm (± 0.8 mm).
