High Pressure Tee

所屬分類

inquiry



1

Product description

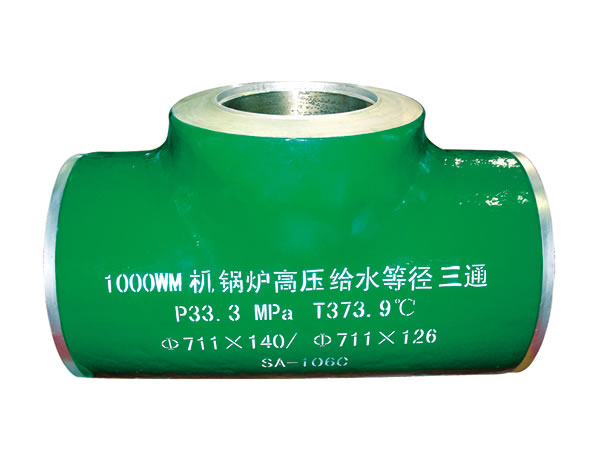

High Pressure Tee

Main Material:WP1, WP11, WP12, WP22, WP5, WP9, WP91, 16Mo3, 10CrMo5-5, 13CrMo4-5, 10CrMo9-10 etc.

Main Processing Technology

Raw material entering factory → Is cut into billet → Flattened to dimension requirement → Heating convex hole → Hot extrusion forming → Heat treatment → Machined groove → Surface treatment → Finished product inspection → Mark protection → Put in stock

(Note: There is a pickling and passivation process for stainless steel products before surface treatment)

Size

1/2"-120"

Standard

ASTM A234	WPB, WPC, WP11, WP12, WP5, WP91, WP22
ASTM A403	WP304, WP304L, WP316, WP316L, WP321
ASTM A420	WPL3, WPL6
API 5L	L245(NB), L290(X42), L320(X46), L360(X52), L390(X56), L415(X60), L450(X65), L485(X70), L555(X80)
EN 10253-2	P235GH, P265TR2, P265GH, P355NH L245(NB), L290(X42), L320(X46), L360(X52) L390(X56), L415(X60), L450(X65), L485(X70), L555(X80)
ASTM A105	A105, A105N
ASTM A350	LF1, LF2, LF3
ASTM A694	F42, F45, F50, F52, F56, F60, F65, F70
ASTM A182	F5, F9, F11, F22, F91, F304, F304L, F316, F316L, F316H, F321

Wall Thickness

SCH5, SCH10, SCH20, SCH30, SCHSTD, SCH40, SCH60 SCHXS, SCH80, SCH100, SCH120, SCH140, SCH160, SCHXXS

Color

Black, Yellow, Blue, Red. etc as client requirment.

Surface Coating

Rust-proof oil; Black; Galvanized; Polyethylene Coating; Epoxy Coating, etc

Marking

Marker permanent

Package

Ply-Wooden Case for small size Pallet for big size

Certificate

BV ISO9000,CRN,CE

The Third Party Inspection

BV,SGS,LOIYD,TUV,and other party alloyed by clients

Brand

TSZHONGRAN

Min Order

1PCS

Payment Terms

T/T, 100% LC AT SIGHT, 100% LC 30 OR 60DAYS AFTER BL OF DATE,

Delivery Time

7-30days according to acutal order.

Delivery Port

TIANJIN, QINGDAO,SHANGHAI, NINGBO, SHENZHEN,

Delivery Ability

3000TONS/MONTH

Applicating

Paper-marking, Oil and natural gas pipeline, Boiler and heat exchanger, Smelting,Water conservancy, Electric power, Chemical, Pharmaceuticals etc

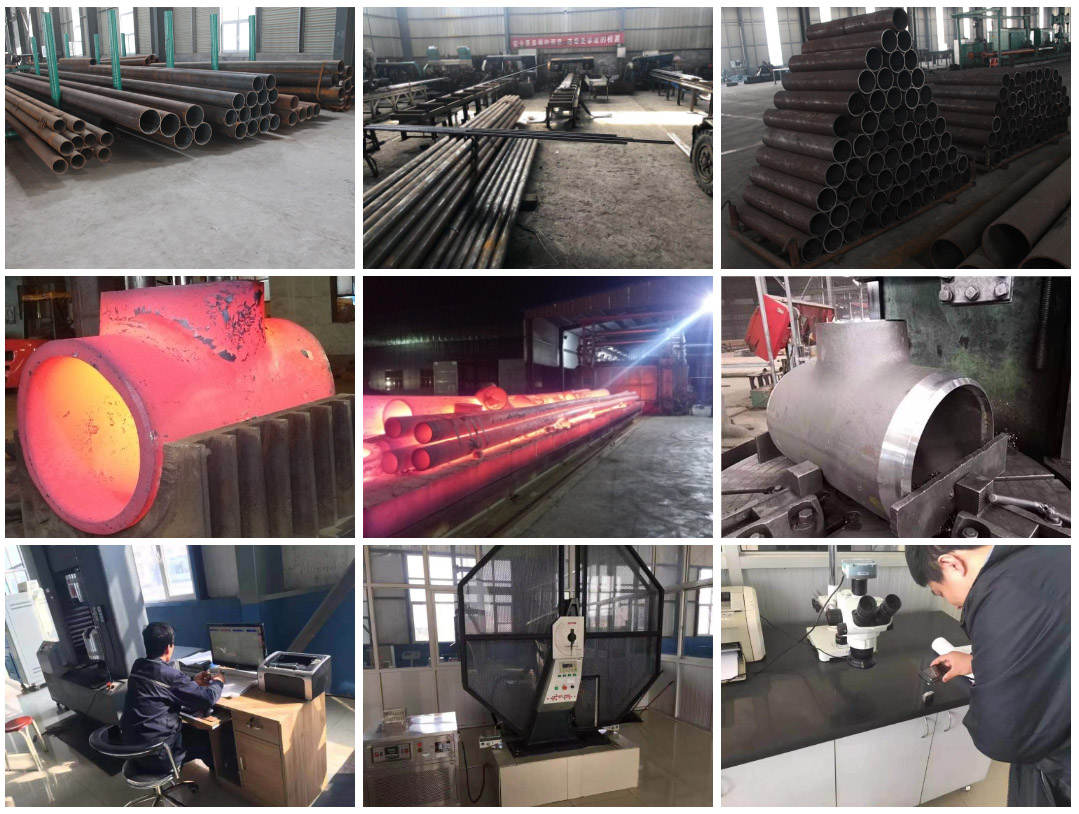

Main Equipment and Installation

1:2500T hydraulic press (mainly used for flattening and hot pressing)

2:500T hydraulic press (mainly used for flattening and hot pressing)

3:315T hydraulic press (mainly used for flattening and hot pressing)

4: 2 heating furnaces in coal combustion: effective heating area 7.5 m2 and 2.3 M2

5: 1 oil-fired heating furnace: effective heating area 6.4 M2

6: 1 pipe blanking machine (self-made)

7: Machining equipment: lathe (620-1), two vertical lathes: C5225, one ordinary lathe, C630, two vertical drilling machines, one T6112

8: Heat treatment equipment: 1 trolley type oil-fired heat treatment furnace, 8 M2 trolley type box type resistance furnace RT9-80*1500*60, the highest furnace temperature 1200℃

9: Sandblasting machine 2 sets: mainly used for surface rust removal of pipe fittings

10: Air compressor: air cooling for heat treatment

11: Liquid Cooling Pool: Used for Tube Cooling (Processing and Heat Treatment) Solid Solution Treatment of Stainless Steel

12: Machining Fixture: 40 sets

13: Welding equipment: 14 sets (processing aids)

14: Various moulds: 120 sets for extrusion forming guarantee
